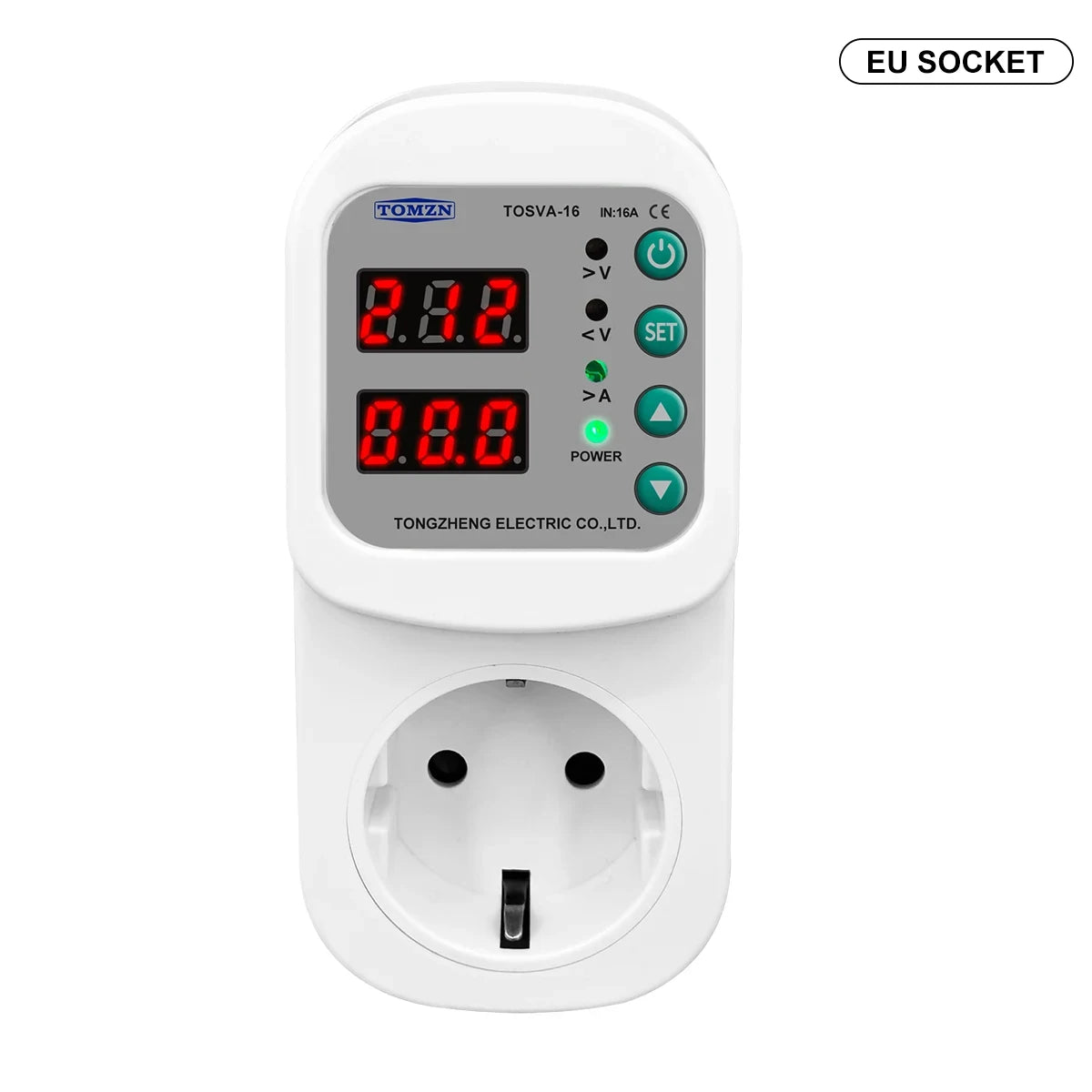

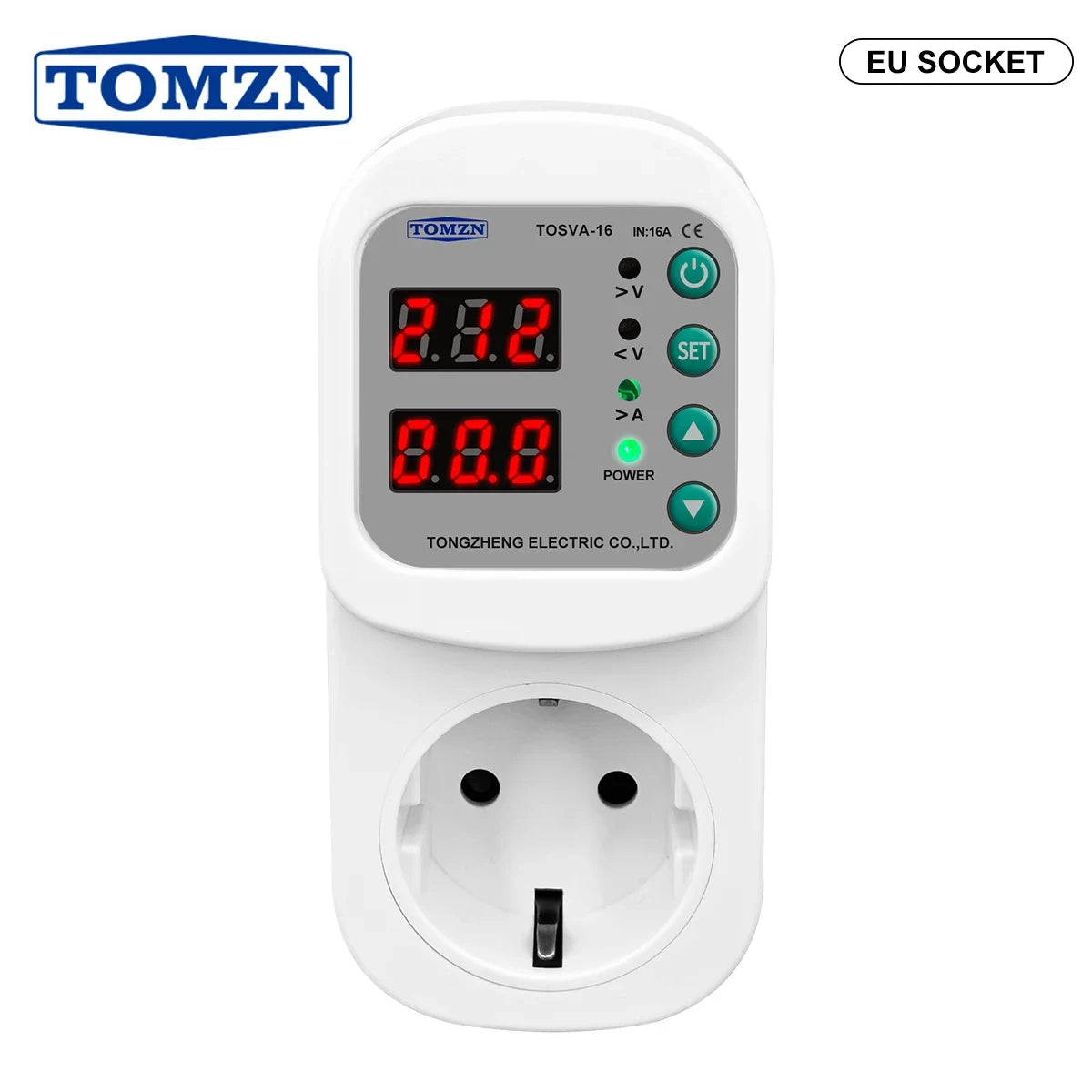

TOMZN Automatic Voltage Current Protector Socket AC110V 220V Adjustable 1-16A Power Surge Protector EU Plug Socket TOSVA-16
TOMZN Automatic Voltage Current Protector Socket AC110V 220V Adjustable 1-16A Power Surge Protector EU Plug Socket TOSVA-16
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: TOMZN
Certification: CE
Choice: yes
High-concerned chemical: None
Is Smart Device: No
Model Number: TOSVA-16 EU
Origin: Mainland China
Rated Voltage: 220V
Type: Voltage protector,Voltage relay
is_customized: Yes
General
General
General

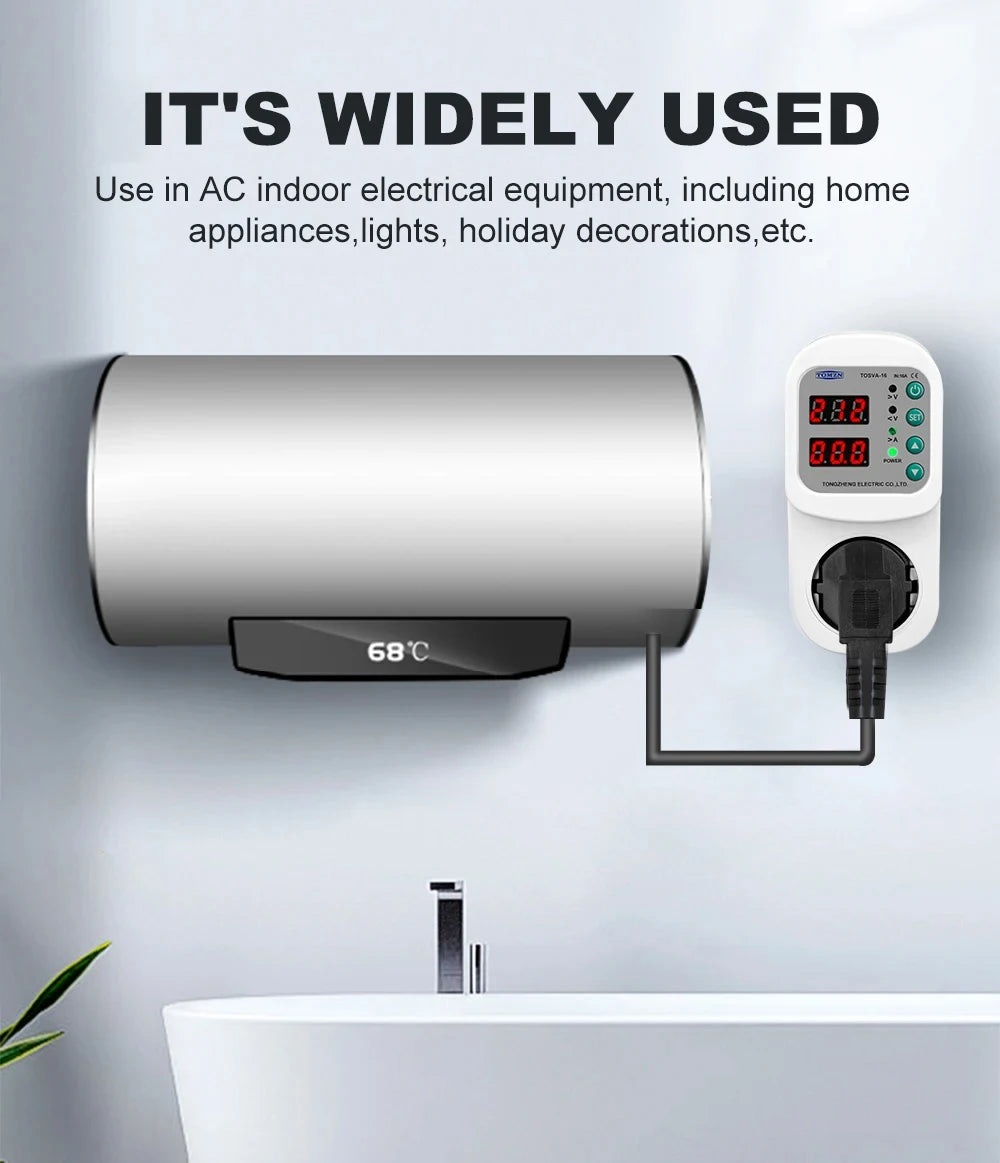

TOSVA-16 is a high-end smart power protection socket that integrates comprehensive protection, status monitoring, and fully customizable parameters. Designed for electrical appliances and equipment sensitive to power quality—such as home electronics, office devices, and industrial controls—it ensures reliable operation and safety.

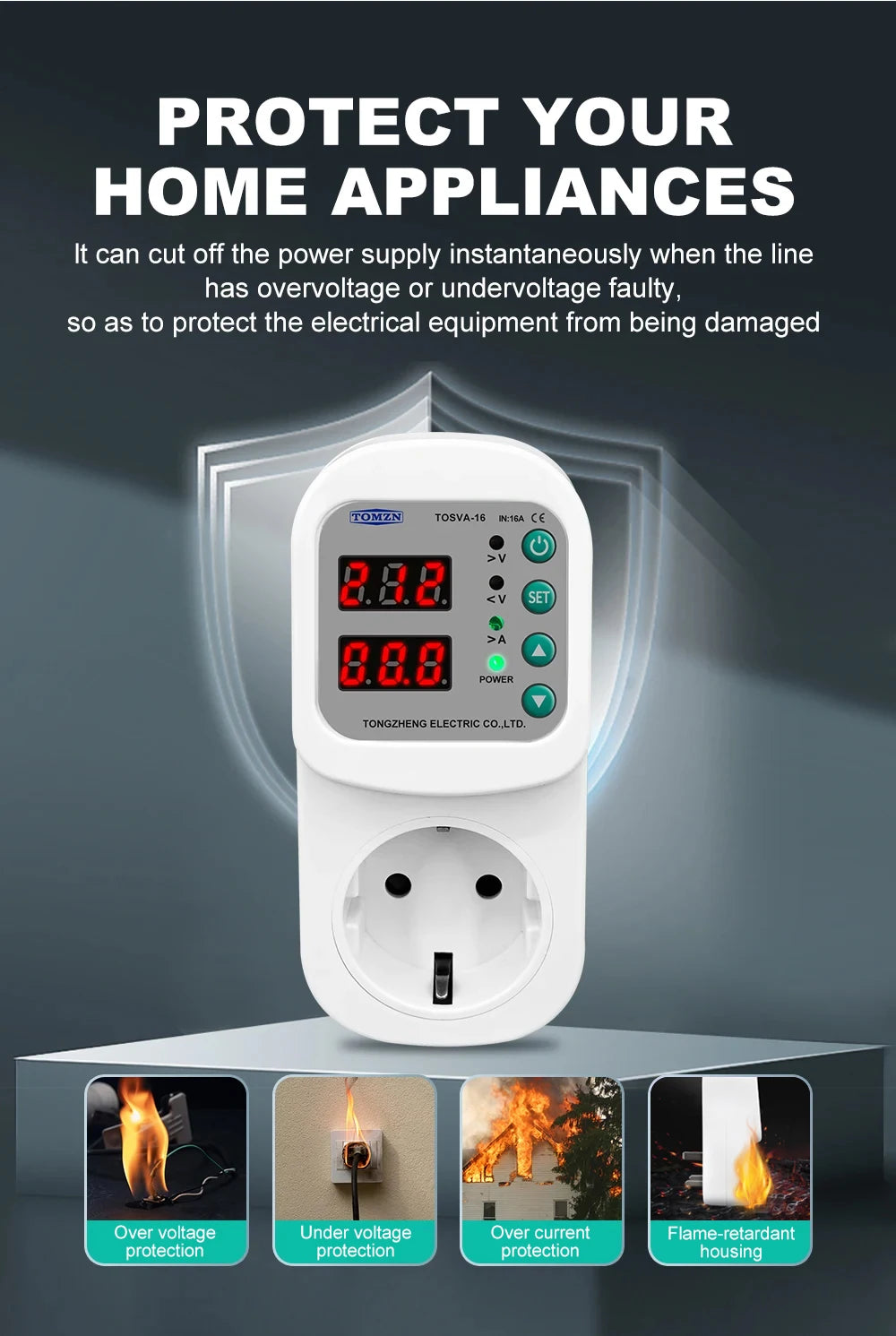

Functions

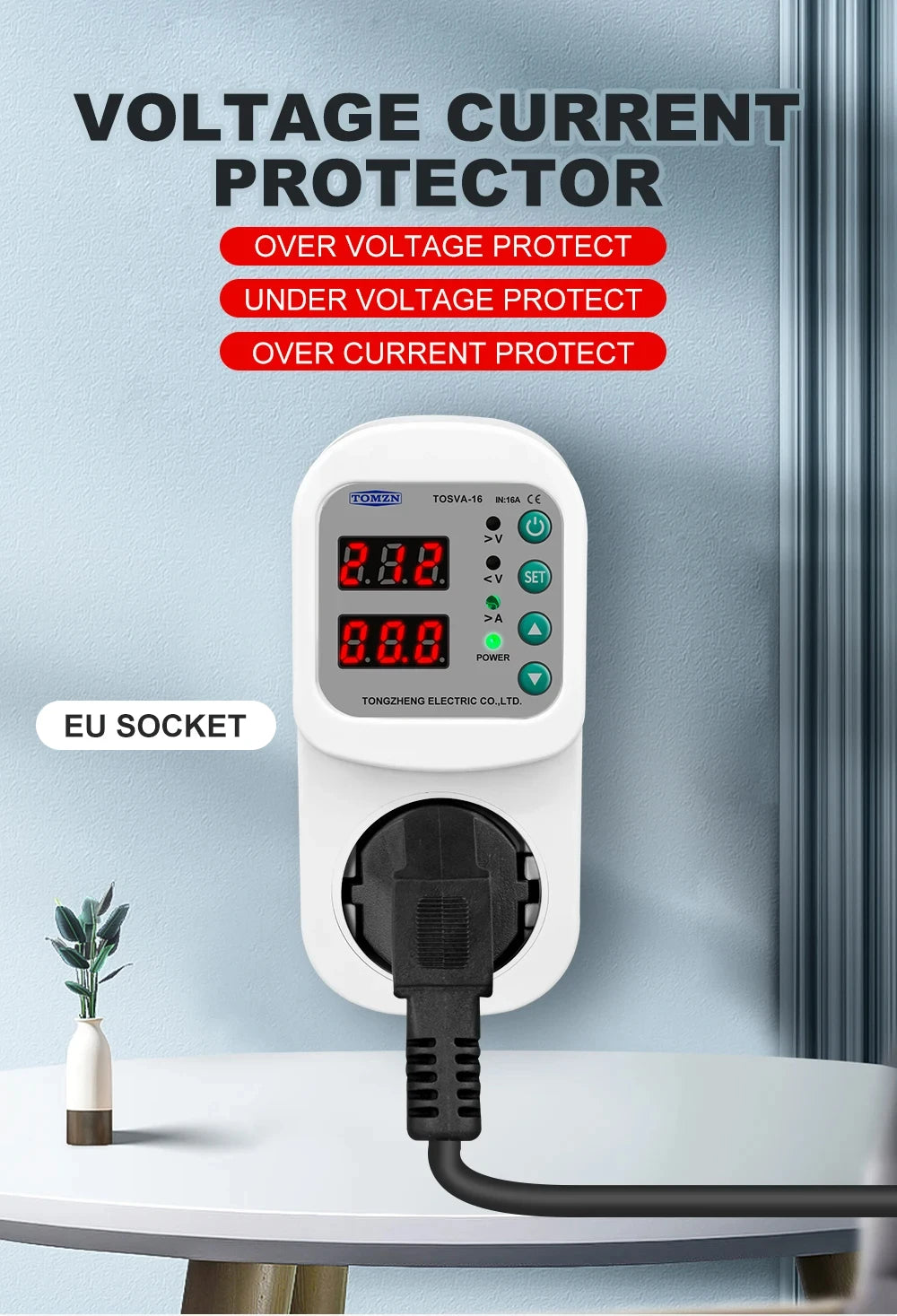

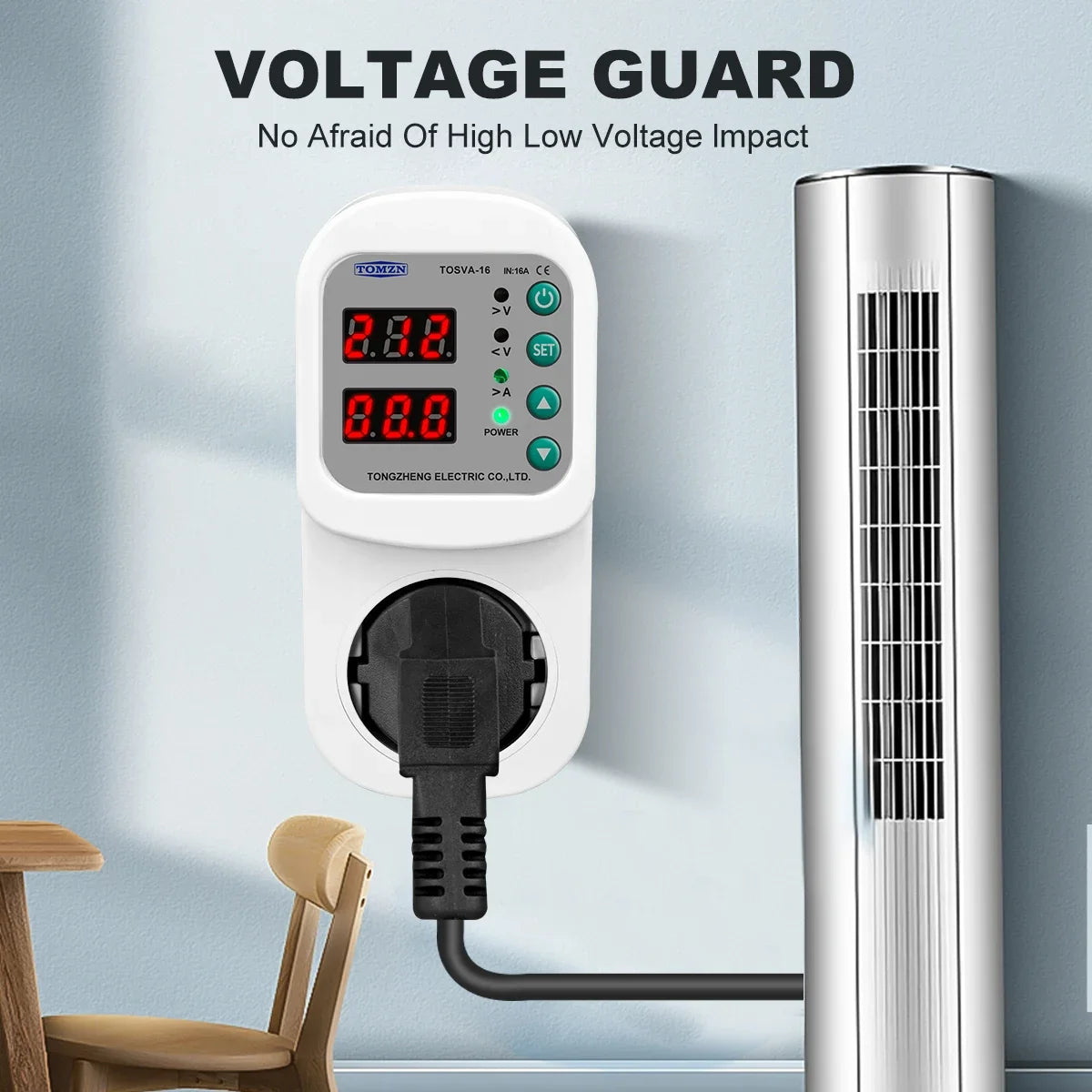

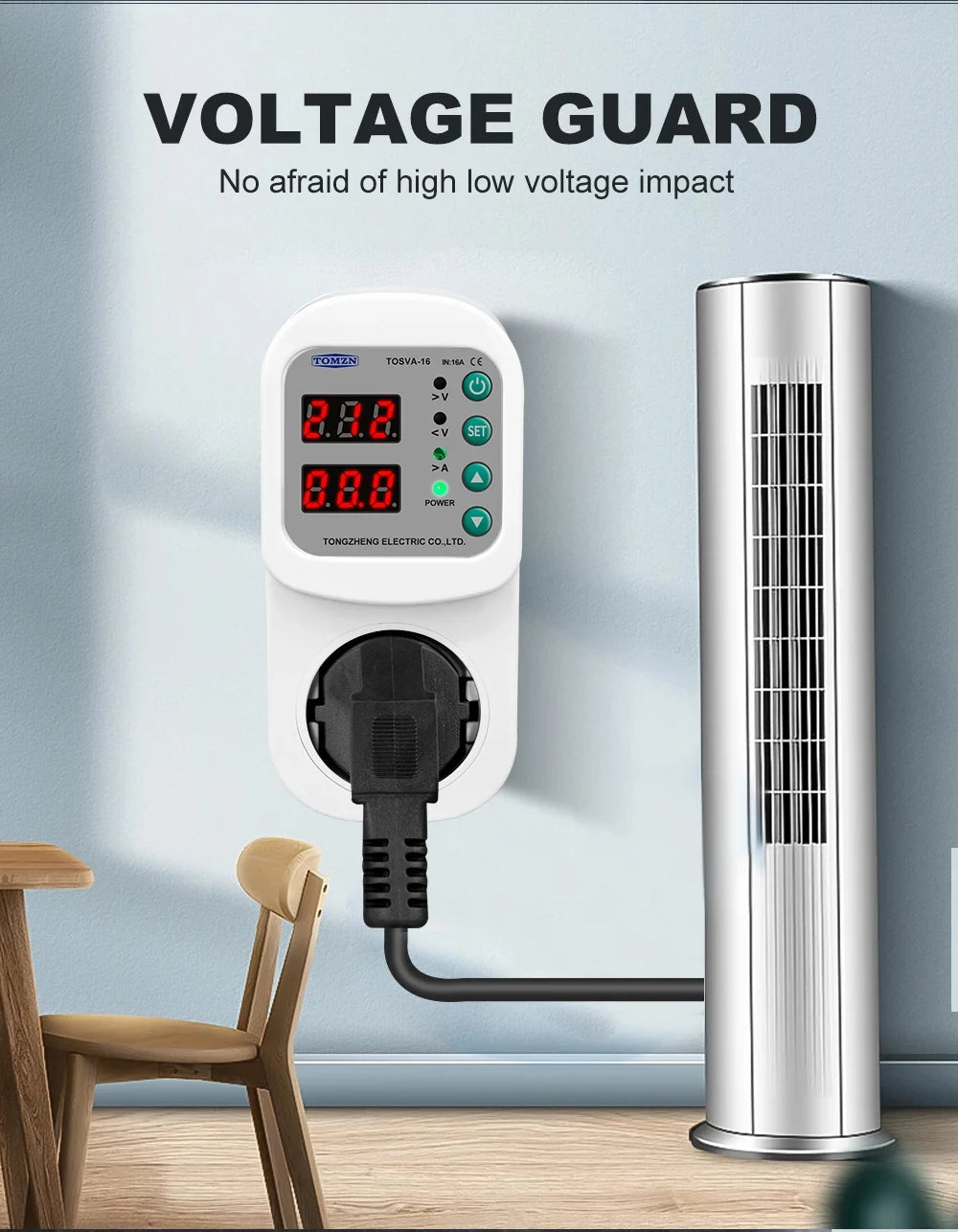

1.Over-voltage protection
2.Under-voltage protection

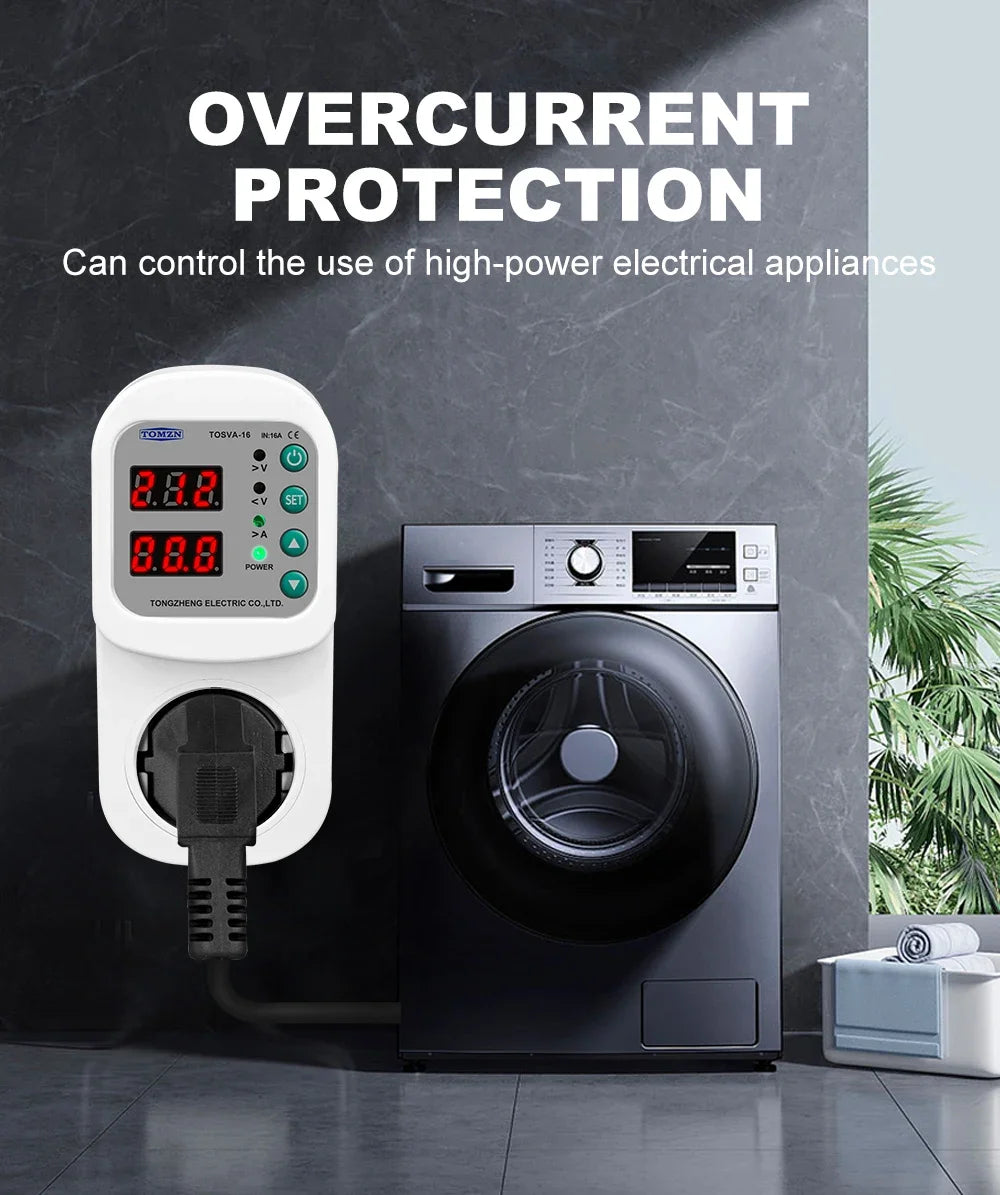

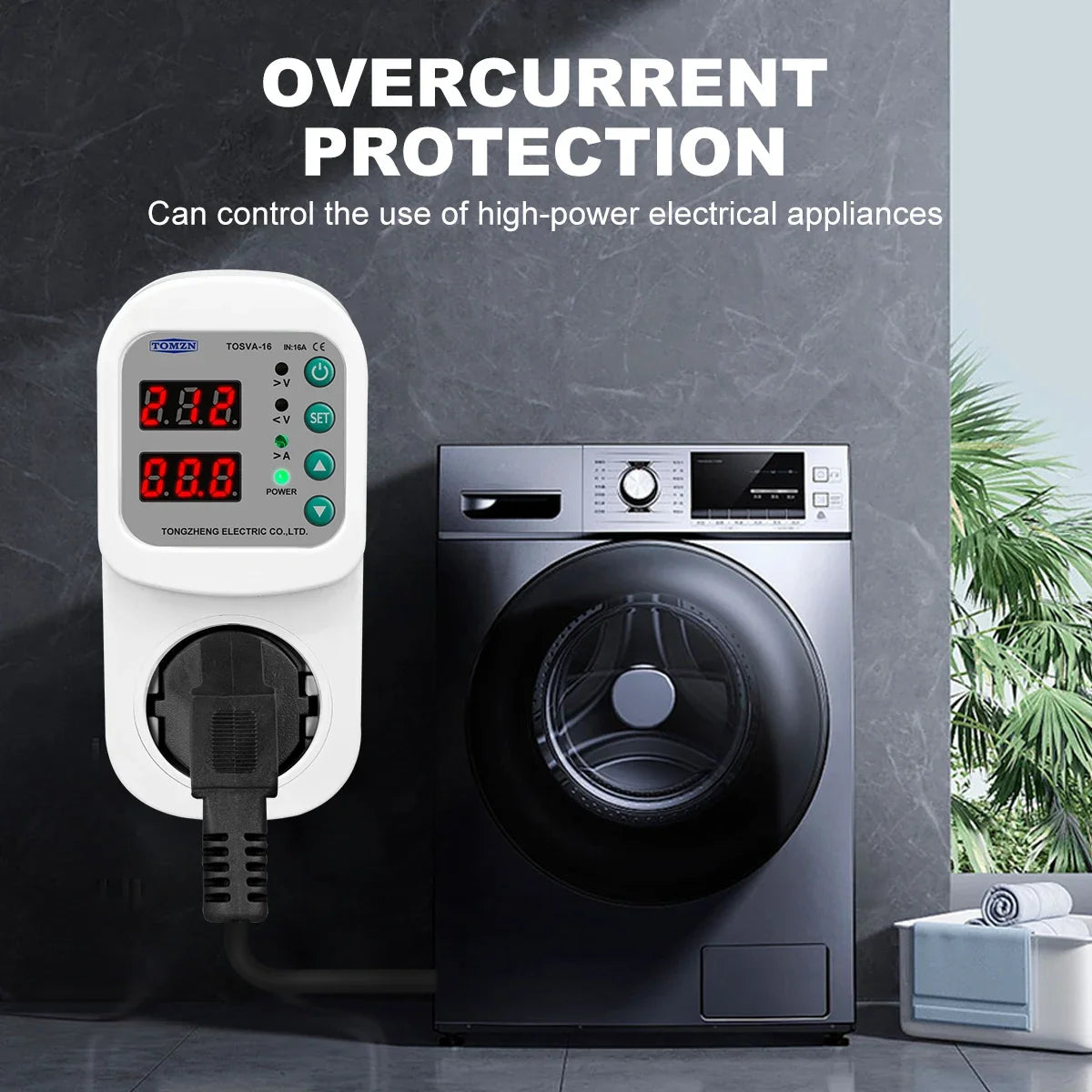

3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)

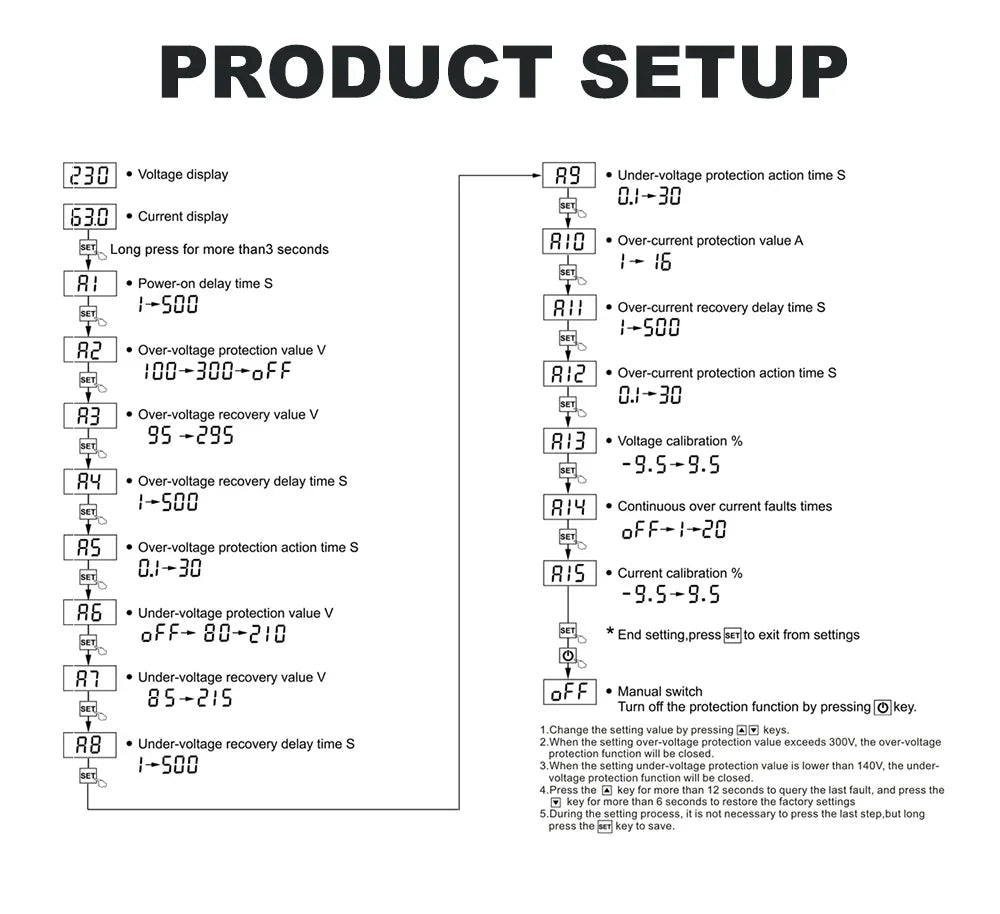

7. Voltage calibration: Voltage +-9.5% adjustable.
8. Restore factory settings: press the down button for more than 12s
9. Fault inquiry: Press the UP button from more than 12S

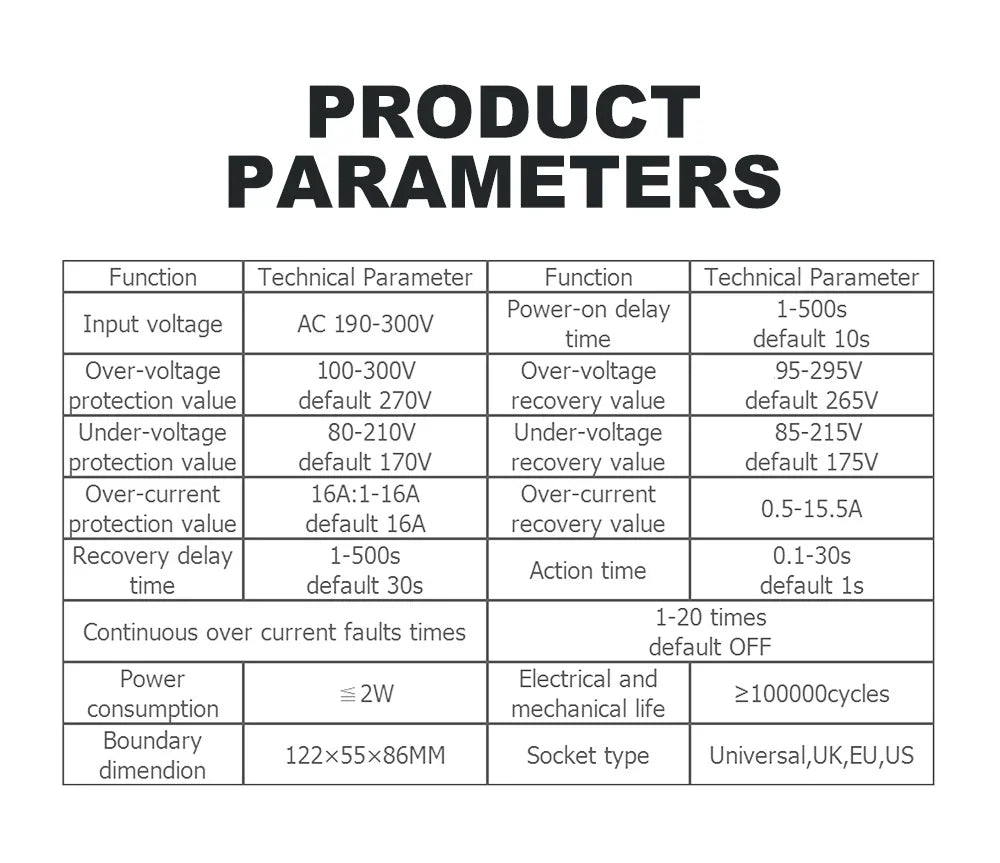

Product Parameters
1.Model number:TOSVA-16
2.Power supply:90-300VAC 50/60Hz
3.Max.Loading power: 1~16A Adjustable(default:16A)
4.Over-voltage protection value range:100V~300~OFF(default:270V)
Over-voltage recovery voltage range: 95V--295V(default:265V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V--210V --OFF(default:170V)
Under-voltage recovery voltage range:85V--215V (default:175V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-16A (default:16A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
