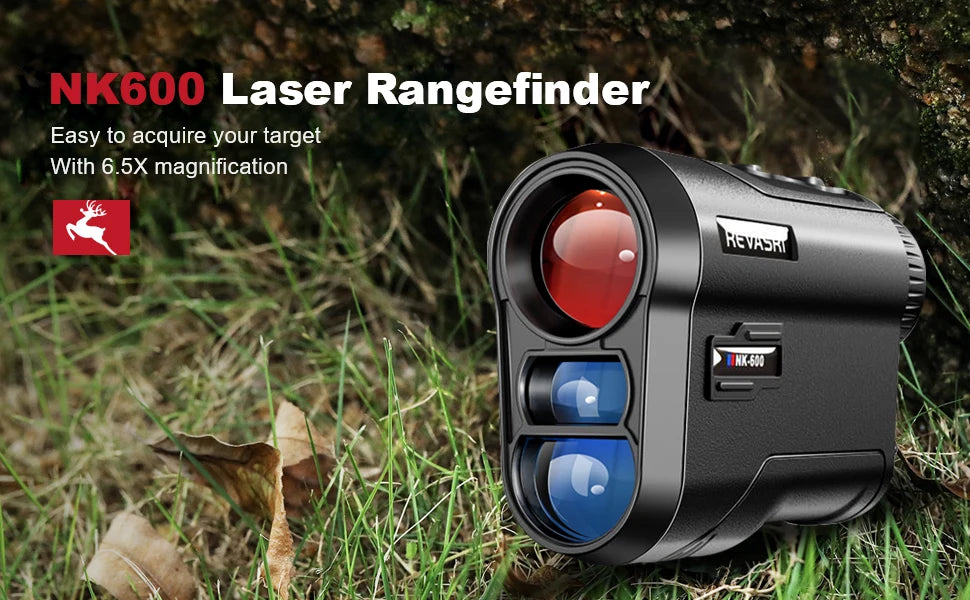

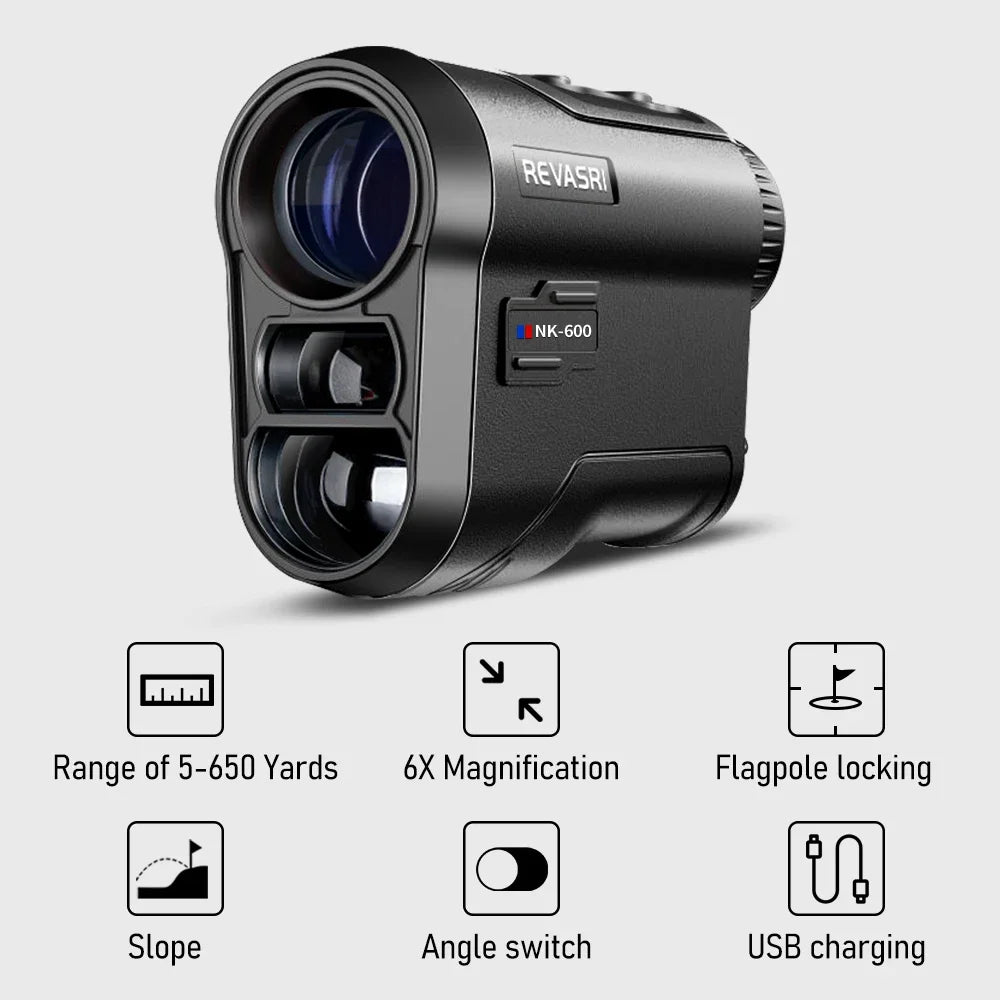

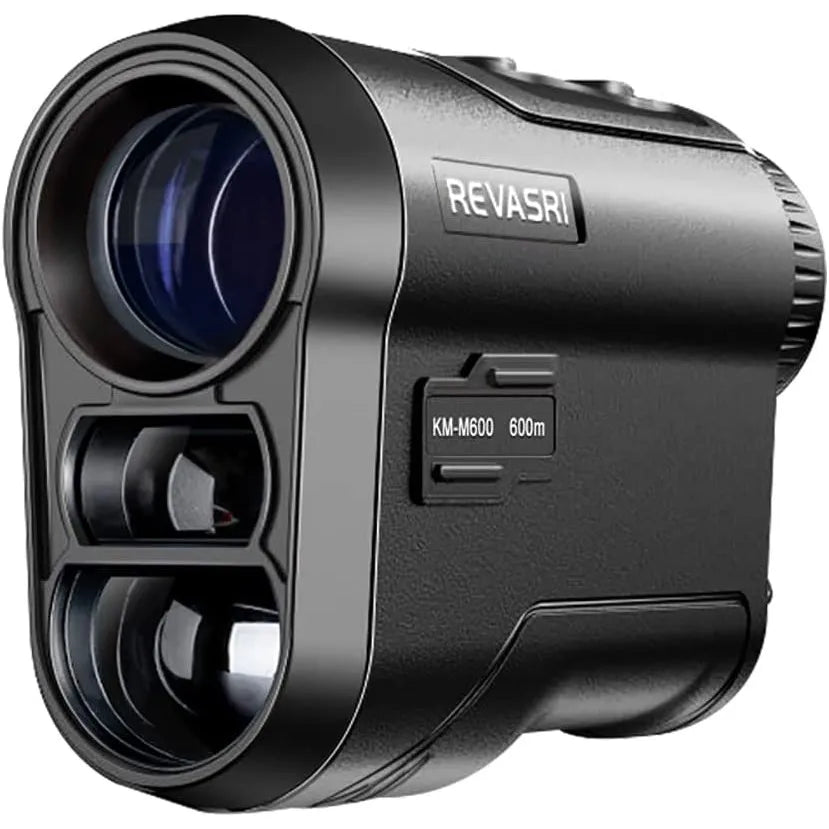

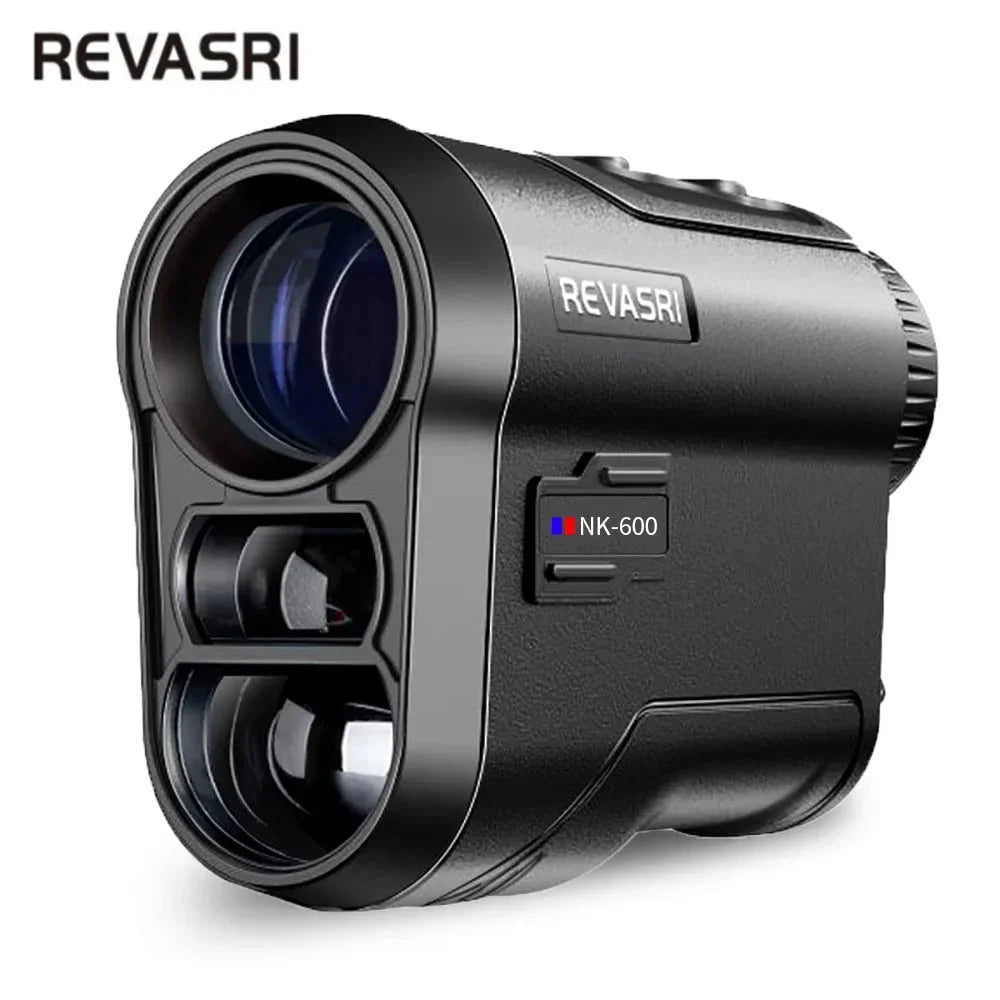

REVASRI 600M/Yard Golf Laser Rangefinder with Slope Compensation Flagpole Lock Vibration USB-C Rechargeable for Golfing
REVASRI 600M/Yard Golf Laser Rangefinder with Slope Compensation Flagpole Lock Vibration USB-C Rechargeable for Golfing
Couldn't load pickup availability
SPECIFICATIONS
Applications: for Golf Tournament Legal
Battery Included: Yes
Brand Name: REVASRI
Certification: CE,FCC,RoHS,weee
Choice: yes
High-concerned chemical: None
Laser hazard level: Class 1（<1mW）
Measurement Accuracy: ±1m
Measurement errors: ±1Yard/Meter
Measuring Range: 5-600m/5-1000m
Model Number: Golf Range Finder
Origin: Mainland China
Power Source: Rechargeable
Power Type: Rechargeable
Power supply: USB-C Rechargeable
Product name: Golf Rangefinder for Golfing Tournament Legal
REVASRI Model: Golf Rangefinder with Slope
Size: 96*34*67mm

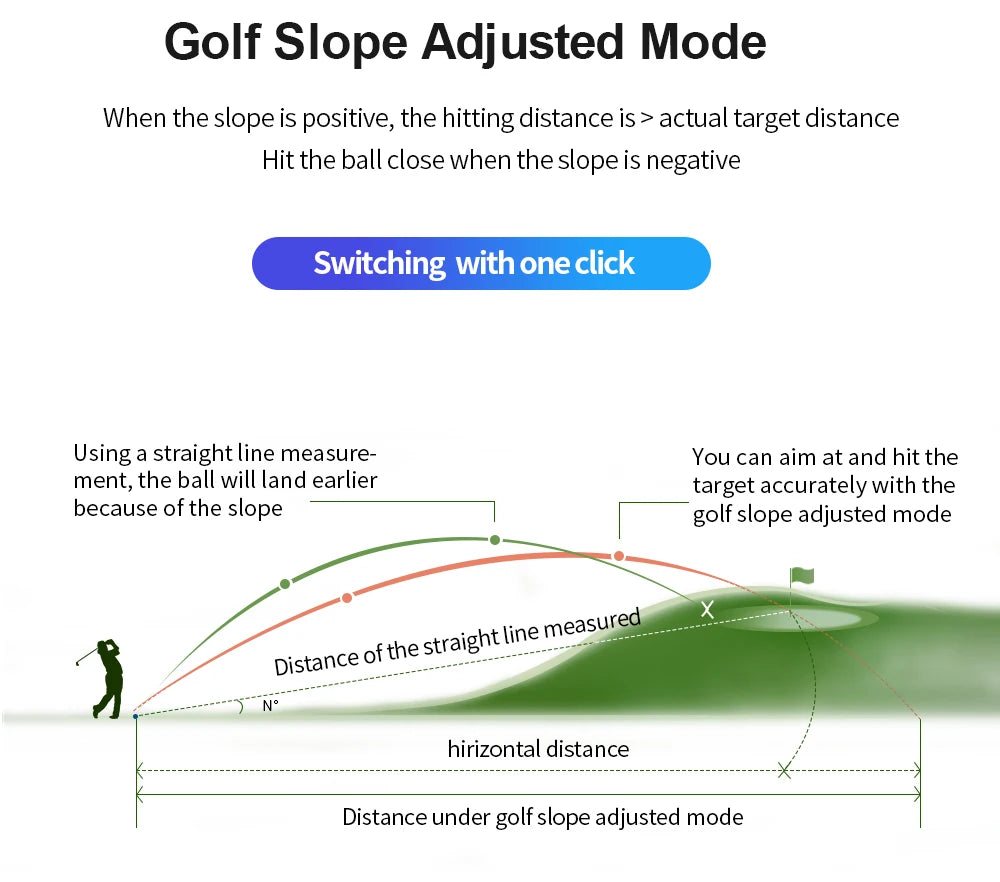

Slope compensation: Yes

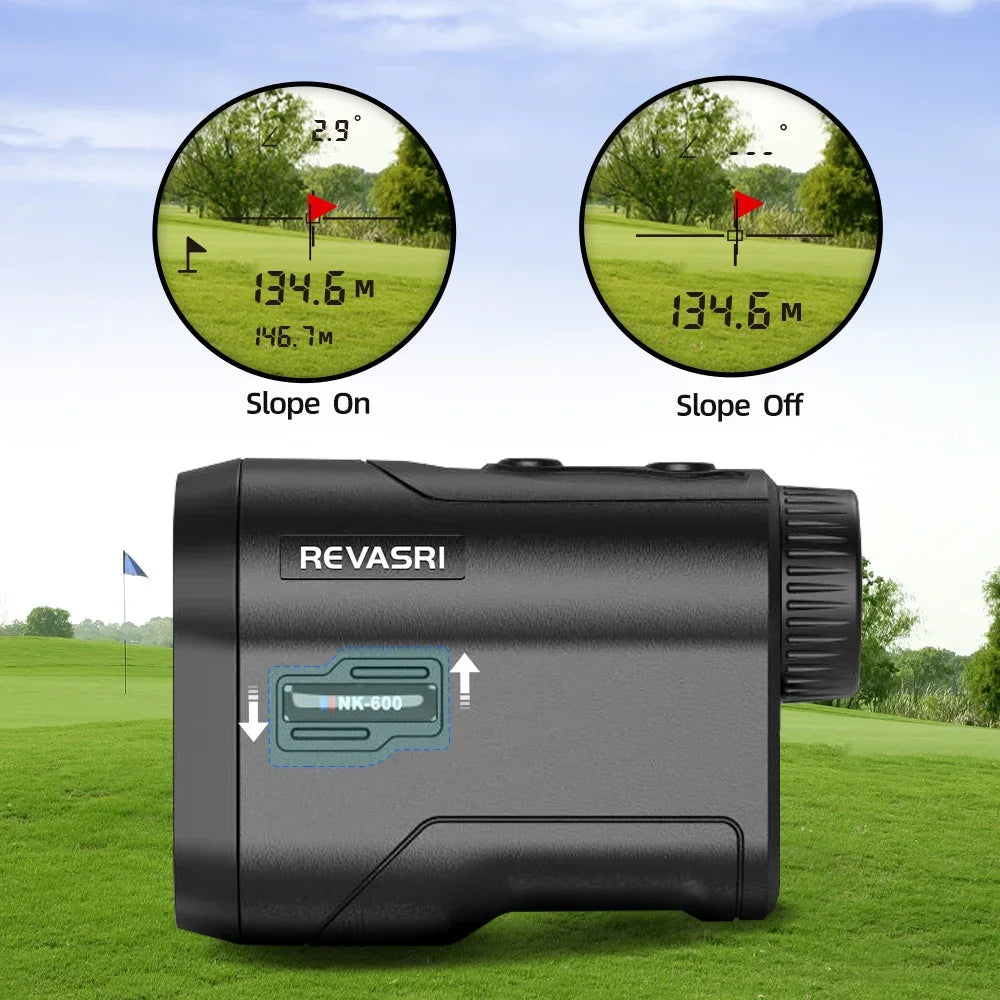

Slope switch: Yes

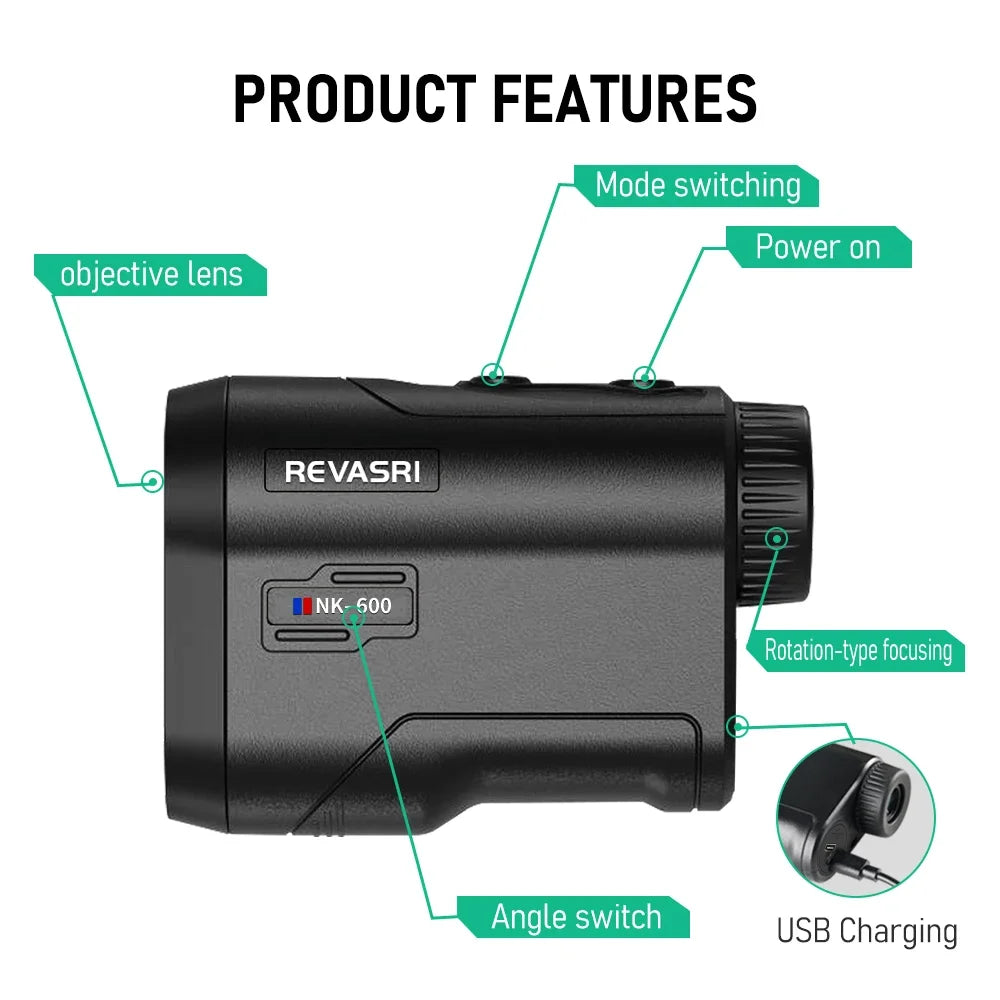

Switch Unit: M/Yard Press the M button to switch the unit Y or M.
Vibration: After the flag is locked
Precautions:
1. This rangefinder is designed for long-distance measurements, with a minimum measurement distance of 5 meters.
2. Glass can reflect the laser beam and affect measurement results. Do not measure through glass during use.
3. In low-light conditions at night, additional lighting is required to view the readings, as the eyepiece display is not illuminated.
4.It supports 6x magnification, which can be adjusted to the appropriate magnification by rotating the eyepiece knob.
5.Rain, fog, and dusty conditions may obstruct laser transmission and affect the maximum measurement distance.When measuring objects, select light-colored buildings as the farthest target as possible. Complex vegetation on mountains can obstruct the reflection of laser signals.
Model Number:NKG-Golf
Unit：M/Yard Press the M button to switch the unit Y or M.
Features:
Ranging Method:Semiconductor laser ranging
Ranging Distance:5-600M/5-1000M
Ranging Accuracy:±1M
Ranging Display Mode:In-view LCD display
Exit Pupil Diameter:3.1mm
Exit Pupil Distance:12.1mm
Working Temperature:-20~50℃
Operating Humidity:≤80%
Laser Safty:905nm Class 1 laser, laser output<5mw
Power Supply:built-in Li-ion battery (3.7V) Supports USB-C charging
Focusing Mode:Manual Focusing(Rotating mirror）
Eyepiece Lens Quality:Multilayer Coated
Magnification:6X
Product Size:96*34*67mm

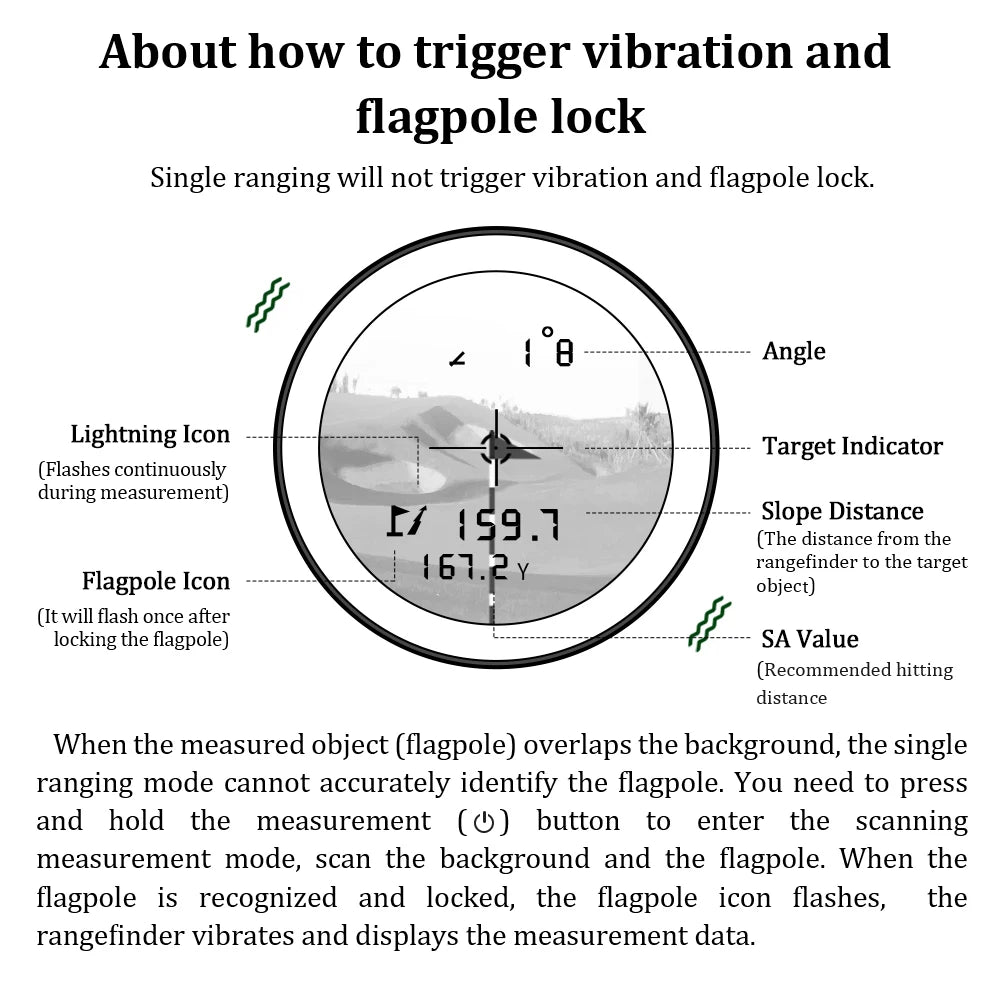

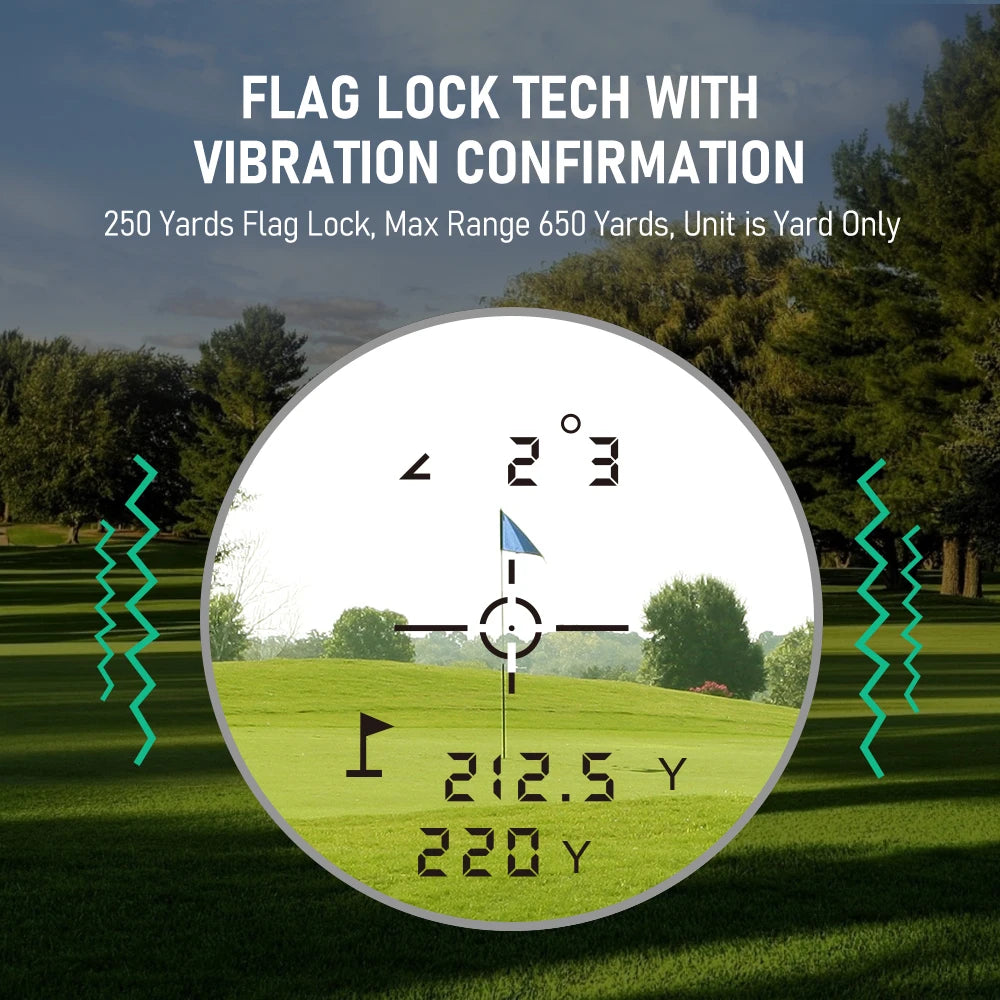

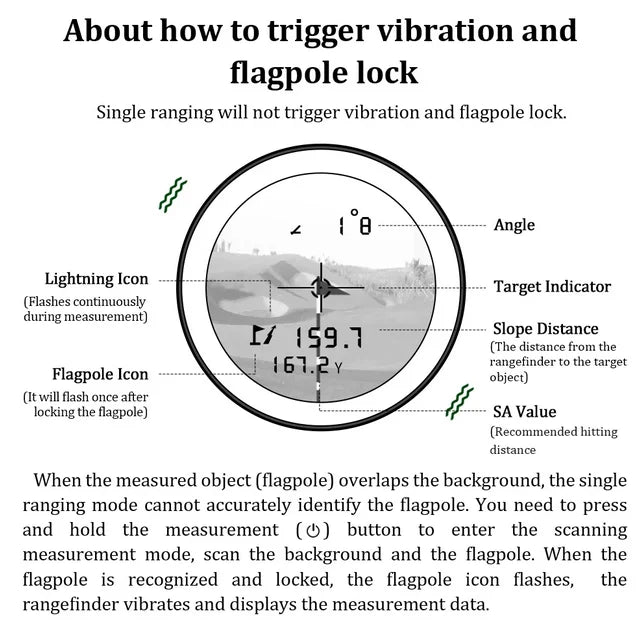

How does the rangefinder cause the lock fag to vibrate?
In Golf Mode.
1. measure the background of the slope behind the flag.
2. Press and hold the Measure button (to enter Scan Mode) and slowly move from the background toward the flag. The rangefinder will recognize the flag and the flag logo will flash and vibrate.
3. The distance to the flag and the slope compensation distance are displayed.
You can try again as mentioned above; if you have any other questions, please do not hesitate to contact me and we will reply to you as soon as possible.
